Paint Filled Engraving for Industrial Panels and Equipment
In many industrial environments, clear identification isn't simply about appearance—it's essential for safe operation, efficient maintenance and long-term reliability.
Paint filled engraved panels combine the permanence of laser engraving with the improved visibility of coloured paint fill, producing professional, high-contrast markings that remain easy to read throughout the life of the equipment.
Whether fitted to electrical control panels, operator interfaces, process equipment or specialist machinery, paint filled panels offer an attractive, durable alternative to printed graphics or adhesive labels.
What Is Paint Filled Engraving?

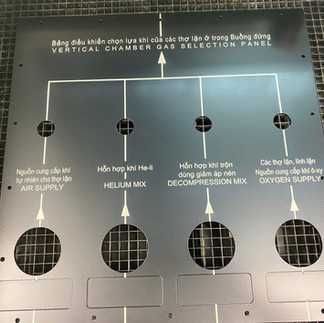

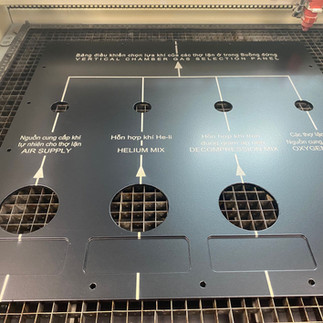

Paint filled engraving is a manufacturing process where information is first permanently engraved into the surface of a metal panel using a laser.

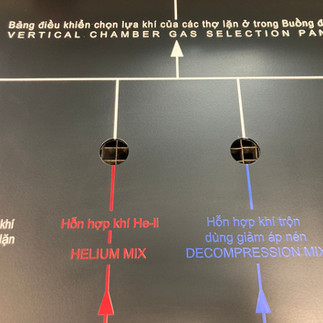

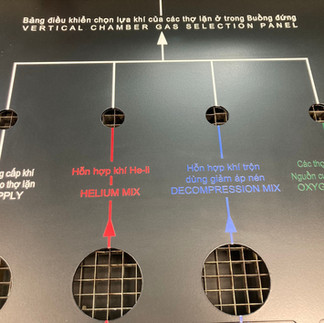

Once engraved, the recessed areas are carefully filled with specialist paint before the excess is removed, leaving colour only within the engraved detail.
The finished result combines the durability of laser engraving with excellent visual contrast, producing markings that are both functional and aesthetically pleasing.
Unlike surface printing, the information is physically engraved into the material, meaning it cannot simply peel away or wear off during normal use.
Why Choose Paint Filled Panels?
Industrial panels often need to satisfy two requirements:
They must remain readable for many years.
They must look professional.
Paint filled engraving achieves both.
Key benefits include:
Excellent contrast for improved readability
Professional appearance
Resistant to cleaning chemicals and general wear
Suitable for demanding industrial environments
No labels to peel or fade
Ideal for both small batches and bespoke projects
For manufacturers producing premium equipment, paint filled panels also enhance the perceived quality of the finished product.
Suitable Materials
One of the advantages of laser engraving is its flexibility across a range of engineering materials.
Paint filled engraving can be applied to materials including:
Powder coated metals
Stainless steel
Aluminium
Mild steel
Brass for specialist applications
The most suitable material depends on the operating environment, appearance requirements and corrosion resistance needed for the finished product.
Common Applications
Paint filled engraved panels are widely used throughout industry wherever permanent, professional identification is required.
Typical applications include:
Machine fascia panels
Process control equipment
Industrial instrumentation
Marine control systems
Laboratory equipment
Food processing machinery
OEM equipment
Bespoke engineering projects
Because each panel is laser engraved directly from CAD artwork, layouts can easily incorporate logos, symbols, serial numbers, scales and variable information.
Why Laser Engraving Instead of Printing?
Printed graphics certainly have their place, but industrial environments are rarely gentle.
Paint filled laser engraving offers several advantages over traditional printing:
Paint Filled Engraving | Printed Graphics |
Permanent engraving | Surface print only |
Excellent durability | Can scratch or wear |
High contrast | May fade over time |
Resistant to many industrial environments | More susceptible to damage |
Premium appearance | Depends on print process |
The engraved detail remains physically cut into the material, giving an additional level of durability beyond surface-applied graphics.
Precision Matters
One of the biggest advantages of laser engraving is the level of detail that can be achieved.
Fine text, intricate logos, operating instructions, legends and graduated scales can all be engraved with excellent accuracy before being paint filled.
This allows complex control panels to remain both functional and visually appealing without sacrificing clarity.
Paint filled engraved panels combine durability, precision and appearance in a way that few other identification methods can match.
By permanently engraving information into the material before applying a carefully controlled paint fill, manufacturers benefit from long-lasting, professional identification that's built for demanding industrial environments.
Frequently Asked Questions
How durable is paint filled engraving?
Because the information is laser engraved into the material before paint filling, the markings are extremely durable and suitable for long-term industrial use.
Can logos be engraved?
Yes. Company logos, operating symbols, safety information and bespoke graphics can all be incorporated into the engraving.
Which colours are available?
Paint colours can often be selected to provide the required contrast or to complement existing equipment branding, subject to material compatibility and application requirements.
Is paint filled engraving suitable for outdoor use?
When combined with appropriate materials, such as stainless steel or suitably finished aluminium, paint filled engraved panels are well suited to many outdoor and demanding industrial environments.
Can you engrave serial numbers or QR Codes?
Yes. Variable information including serial numbers, QR Codes, Data Matrix codes and traceability information can all be incorporated into paint filled engraved panels where required.
